MOD. 68 THE ASSEMBLY AND SETTING UP AND STARTING A Hi buddies.
saw in the previous publication assembly and development of a model bearing reel in two parts, the bowl or neck of the body and the lid or handle.
In this paper we study, and will assemble about the Mod 68, a small model for fresh water, and acknowledge that is one of the models that attracted me most and that I never fish freshwater.
see all the components of a spool 68 Sagarra Mod
The photo shows the crown and pinion bearings, pinion is mounted with two lines of twelve balls each, the balls are slightly smaller than those of the bearings large models.
first thing we want to mount the pinion of the bowl, as we saw in the previous publication in the assembly of Tarzan Mod this step, one of the most important since fine tune the gear will be the success of the refinement and good performance of the reel, is threaded left pinion in the bowl to stop, grab the nut with the wrench and with the other hand we take into gear by the top or the teeth, give a little twist to the right without moving the nut that we fuck with key, we see that the ball will stay more loose or that perfect run through the bearing, before giving the grip a nut we need to check that the center piece does not play between the two rows of balls, we take with fingers and move up and down, if not move the ball and run well this is the signal that we have well-to-point, keep holding the pinion with your fingers in position to tighten the pinion nut and let fixed yet and that after tightening the pinion to double check that is about as many times is pushed too much and runs perfect, if so redo the same operation, it is important that the balls run smooth but with game or dance up and down.
already have about the bowl with the pinion, it is time to assemble the handle, I like first gear mounted in the bowl that you can leave it flat on the table graduate work for bearings, and if you do it with the handle mounted and the bowl is not flat and is more difficult to be moving the left bearing finely.
The first happened and more delicate to mount the handle is that we see in the picture, put the spring in the housing having the bowl, inside the housing at the bottom there is a hole where you have to mess up the dock.
already published an article Asa mount, but I will remember, the second leg of the spring will support the cam or pick-up, just put the cam in the position has the leg of the spring, do not make any single force is put into position and put the screw bolt is tightened gently while the other hand we gradually focused cams so that the screw does not hit in the leg and tilting spring housing screw cams, this is all done with gentleness and affection if not Paw escapes cam spring and once tightened the screw to see if the spring is what we do wrong is to stretch the spring is deformed, or whether we carry it in a flash plasma without realizing that takes the strain spring can be arranged but it is difficult and may not be as original.
A we see that tightening the screw that holds the cams, before we get to the top to lift a little so that cams having topecito in the bottom wire and feel on top of the platform type with the bowl.
already mounted the cam and found that the spring does its function well assemble the trigger and the pier that makes the trigger back into position in the photo is well appreciated alambrecito Steel L-shaped with the two screws that hold it.
If you noticed in the trigger handle assembly was removed, that's the trick to mount the cam to spring, if you try to mount with the trigger position is very difficult if not impossible.
Finally mounting the handle, it's easy just put the side of the cam nut and screw on the opposite side, the picture shows this side with a piece of plastic.
As usual any problems you have to leave, to go riding the bowl with the bearings in the body to go so we just end up not going soft, but everything has solution does not need to do is to force any part of the assembly since all parts have to go to the millimeter, if you will not have to find a solution but did not mount a power base.

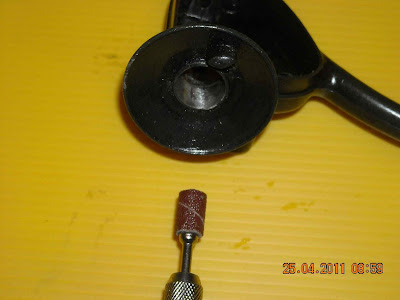

already happened to us at the top of the body of Tarzan Mod that got in the previous publication, but we take the multi problems or Bremen, we put the tool in question, in this case sandpaper and lowered with caution and checking if it enters the bearing, not to go and have the game, if we can find cogiera play the guard or the coil rubbing on one side when turning.
Pay attention to the picture and see the recess so great that I've had to do.
But it was worth the recess and the bearing enters fine as silk.
already mounted the guard in the body and focused on leading the bearing hole to fix it, we will tighten the screw but not at all for when we start tuning lever bearing either the crown.
We set this piece to look nice, the backstop.
is quite easy to assemble and unambiguously as we can occur in other models of reels that we can put the nail backstop ratchet backwards and does not hold the crown, in this case we put through a hole or housing for the anti which has the body, the part referred to as ratcheting the pier, finger squeezed the butt to come out by the other party as much as possible to thread the ratchet pawl, I told you that there is no single error that can be threaded by a simple hole larger view of the two that has the ratchet and how has that position alone makes the nail assembly is mounted in its correct position.
We crown with washer, playing with the gear teeth so that among us well.
Le threading to the axis of the crown at the front of the body that makes plotted nut nut to the crown.
We can mount the lever and see the operation of the crown with the pinion, which is fine if we tightened the screw cap is to set the bearing of the shield, I suppose some just fitted what it takes to leave a point, I once so it rolls fine tuned, to mount what needed is totally fine to work for me, I've tried the other way having the crank shaft and mounted and seems to drag the pinion and the gear, I prefer to set the pinion and it seems the crank shaft and put themselves in position, but each to his taste.
Posted
assemble the bearing shaft by inserting the housing having the rod, we focus the two holes, the shaft and the crank and look for the screw, then we do same in the crown with the crank and we put the screw rod transmission.
We completed the mechanical assembly to the aesthetic and we put the lid with two screws.
We put the reel and fishing.
We have a jewel in our collection as much to fish, I would not be able to use it to fish with what it takes to find all the components of a reel to mount again, but hey each to your liking.
Personally I am not throw them for oil if we are not going to use for fishing, whether it's for our collection and be on a shelf I advise not to do them so, because all he serves is to squirt on the shelf and in some cases by oil oxide.
As I said earlier this reel model I sympathize a lot like me in one word.
I send some pictures of my collection, each one you see has a different characteristic.
Hope you like it or you serve to mount reels.
A greeting to all lau
