This publication is a bit mechanical, and requested by some fans of my blog, have some doubts about how the issue bearings.
There are two types of bearings, the cup and neck and the crown or knob.
This we see in the picture is the cup or neck, is composed of the spiral bevel gear, two sets of balls 12 balls each, the central support of the ball while is to set the bearings with the bowl to the body because it is seen that hole in the center and the nut that is what makes the jam nut to lock it into the bowl.
The bearing of the crown or handle, is made by the crown, two sets of balls 12 balls each game center support to hold the ball and set the bearing to the top of the body, two nuts for the lock nut on the bearing of the shield in the shield abuts the lever but no top, so nuts to have two of them setting makes the bearing locknut once to set the point.
As you can see in the picture needed a special key, without them there can be mounted bearings, unless someone has them to contact Angel Talavera de Corrochano the Reina in Toledo, makes, their data have in the publication of the Museum of Angel.
First assemble the bearing of the shield, the left-hand thread bearing in the bowl, when fully threaded we realize that the balls are also very hard, bearing central support costs will turn .
is at this point where you have to be fine, we have turned by loosening the pinion of the bowl so that the balls are loose and the center support to run as silk, once dropped the ball and the center support to run well we must make sure not to let the ball too loosely, if not to be slack cup bearing work makes the bighead, in other words rolling billboard is not totally straight if not you roll up and down a few microns and can make us touch the coil.
To set the balls rolling well after loose balls with two fingers cojeéis center support bearing and are moving up and down, if you play a little more apretáis the pinion to the connector, the bearing must rotate without play perfect but once the bearing is fine is the time to make the coup de grace, the pinion thread left in the bowl and nut bearing to right that means that when we press the nut of nut cup will stay fixed and the bearing to the connector.
This step is the mother of the lamb because if the nut to tighten the bowl to secure the bearing, the ball comes loose would keep the bearing clearance, we must subject the pinion with your fingers while we press the nut to turn the bowl a little bit of gear to leave the ball at its neither too loose nor too tight, once tightened the bearing to the bowl will make the test up and down the center support bearing if perfect tour and does not move up or down is perfect assembly.
's hard to explain but easy to do, when montéis you will realize how easy it is fine to leave the bearing.
We assemble the bearing of the crown or lever, the bearing assembly is the same as that of the bowl, leave or ball bearings that roll nicely but no play, in this case are set with two sets of number keys 13, afináis the ball well and subject them nut wrench that sits on the ball and with other key apretáis by the second nut against nut, bearings remain fixed, that does not have comprobáis clearance center support bearing and ready to mount on the top of the body.
By going to place the bearing inside the body cap has emerged a small problem, does not enter is a small edge that can be seen in the photo is striking bearing preventing it from.
This problem is also found in the neck from the body to go put the bearing of the shield.

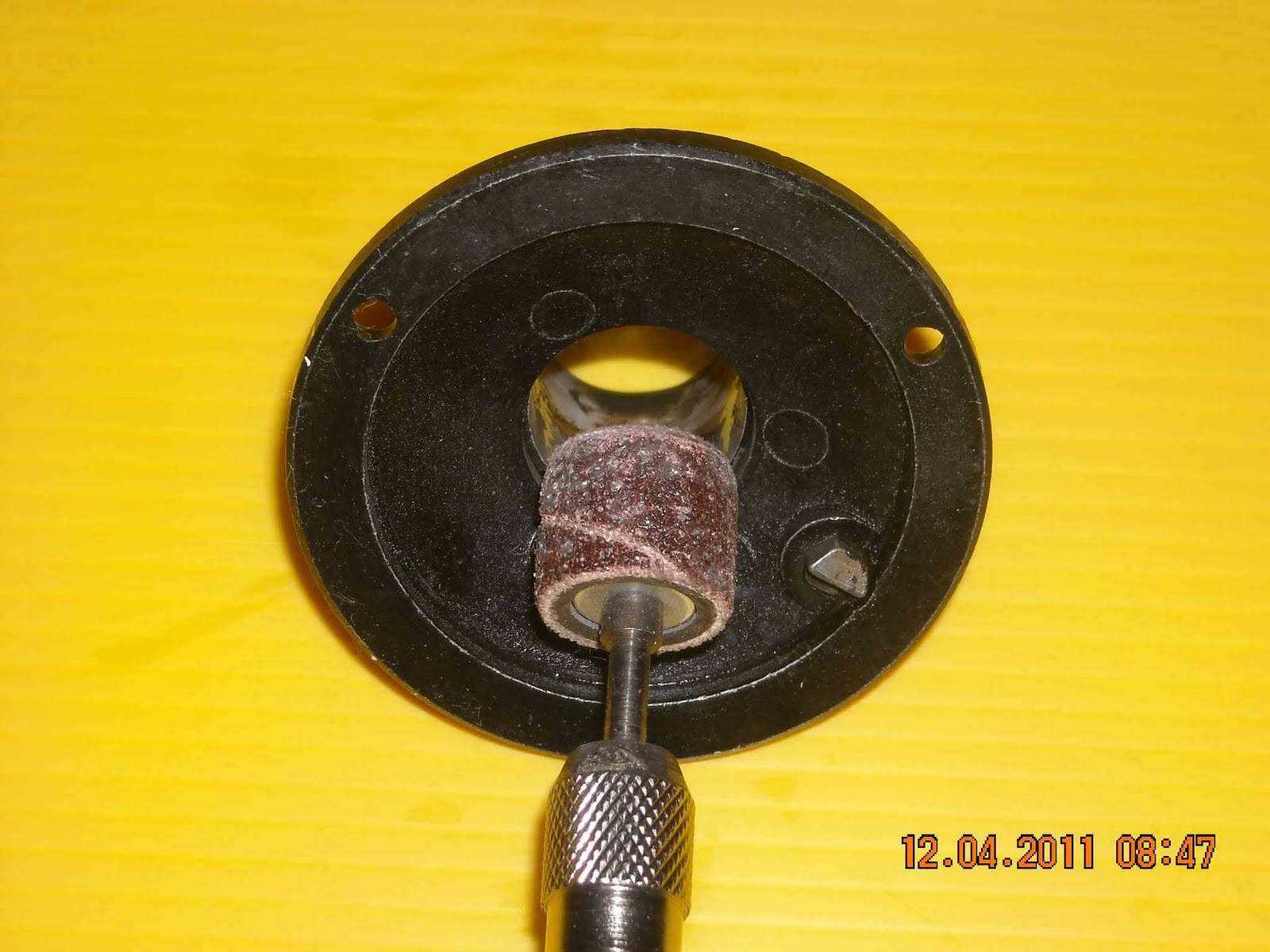

A great evils great remedies, take the multi-purpose machine or Bremen as you want to call it, we put a little sand and cut a little round burrs.
Once the rabbet is not fit checks are cut a little more, always with care not to reduce too much but that between whether to force the bearing.
Fixed issue of the burr introduced bearing on the top, must be taken into account and it is very important that the hole in the bearing is centered in the hole in the lid , considering that the gun that goes in the lid which will hold bearings and has to go perfect in the hole to go fine.
The photo shows what is wrong because it focused the bearing bore is too far forward and that makes the crown is too far forward and too fair to go against the pinion of the bowl by It works poorly and failed to go fine reel.
We set the bowl to the body with the same care that the holes match, we put the gun to a key number 7 of tube or fixed, I scored with my fingers and squeezing out with the key.
One very important thing that will give us perfection in the assembly is not fully tighten the gun, let him tight but loose.
After setting the cup to the body axis and we put our subjects with eccentric, always checking that the hole of the eccentric shaft matches perfectly.
After mounting the eccentric shaft and eccentric place the guide screw is the screw on the back of the body.
rode the special roll to put the lid on the roll and close.
After closing the spool and the handle is when we start the spool-up.
As I told you get the grease but not final tightening, take the handle and began to spin the reel to start working and that all parts are made in site, you'll notice the first few laps a bit bad but when you give him more laps to handle and with the loose grease the reel be refined.
I noticed that many times if the bowl is a little hard turning the reel upside down by giving the handle to be put in place, when you go noting that it is going fine little tightening Oilers little.
Once snug and you do the same lever that turns the bowl if you have thin, and the Oilers until fully tightened and the reel runs smoothly.
After the installation and set-up with a little oil running alone.
The Mod 68 also has its bearing in the bowl, as well as the round body are in the Super Mod, 2000, Levante, Senior in the Mod 80 and Tarzan, in the oval body is more modern bearing having bearing balls or caught by a plastic, this makes installation easier and not to be graduated and tuned by hand balls, the important thing is that if you change the model installation and commissioning point remains essentially the same
